This guide will explain how to untag VLANs on the USW Flex Mini switch, using the UniFi Application. There are some limitations, such as using custom port profiles.

If you want fast and reliable UniFi hosting, check out HostiFi with expert support, regular backups, managed updates and prices from $19 per month.

To learn more about our hosting plans, create an account or book a free demo to get started.

Contents

Untagging VLANs

• New GUI
• Old GUI

What you cannot do

Untagging VLANs

New GUI

To untag a VLAN on one of the ports, open the UniFI Application and click on the 'Devices' section

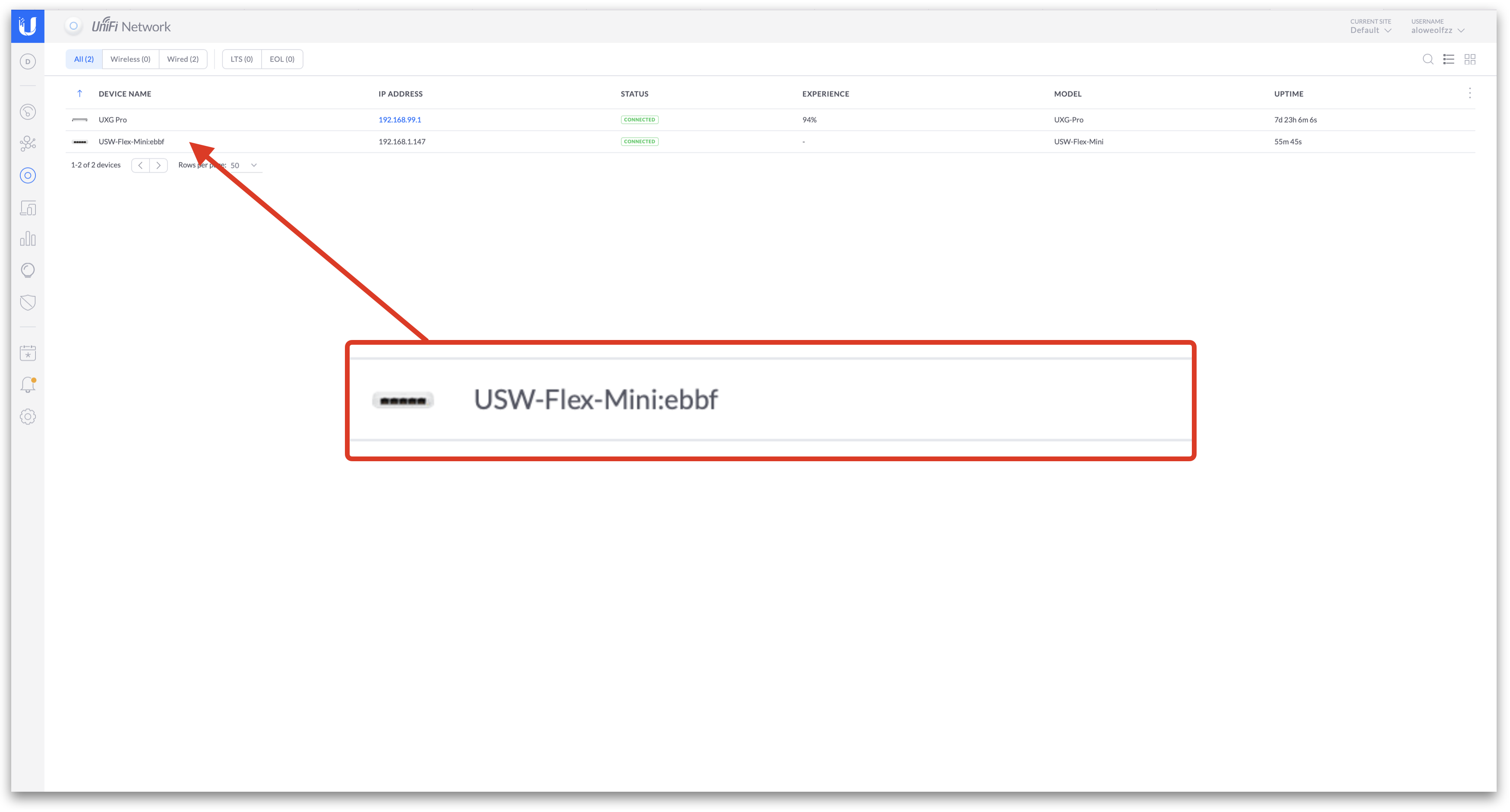

Next, click on the Flex Mini in the list

Once the side panel has opened, click on the 'Ports' tab

Click on a port to edit

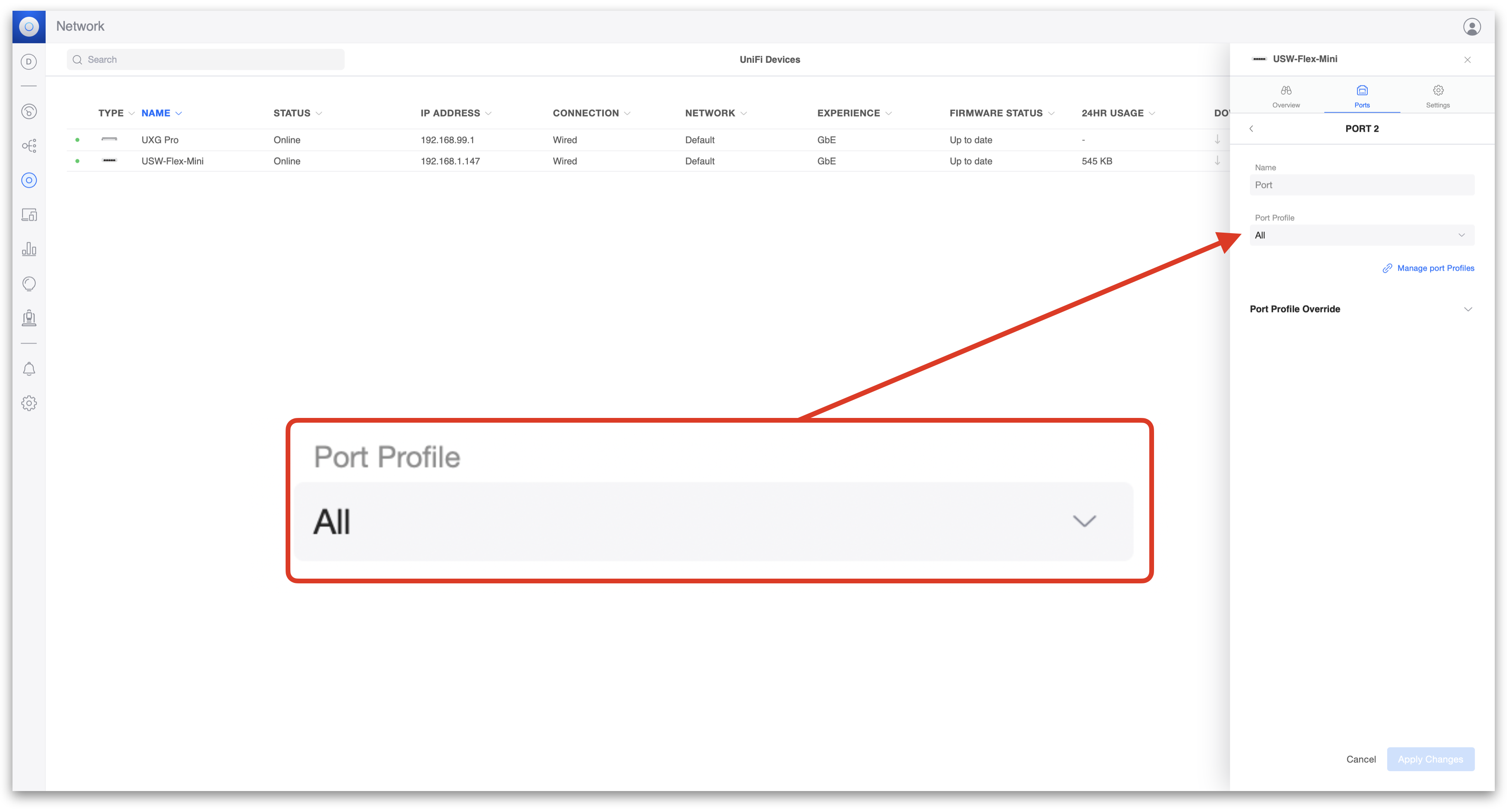

Click the 'Port Profile' to edit the VLANs on this port

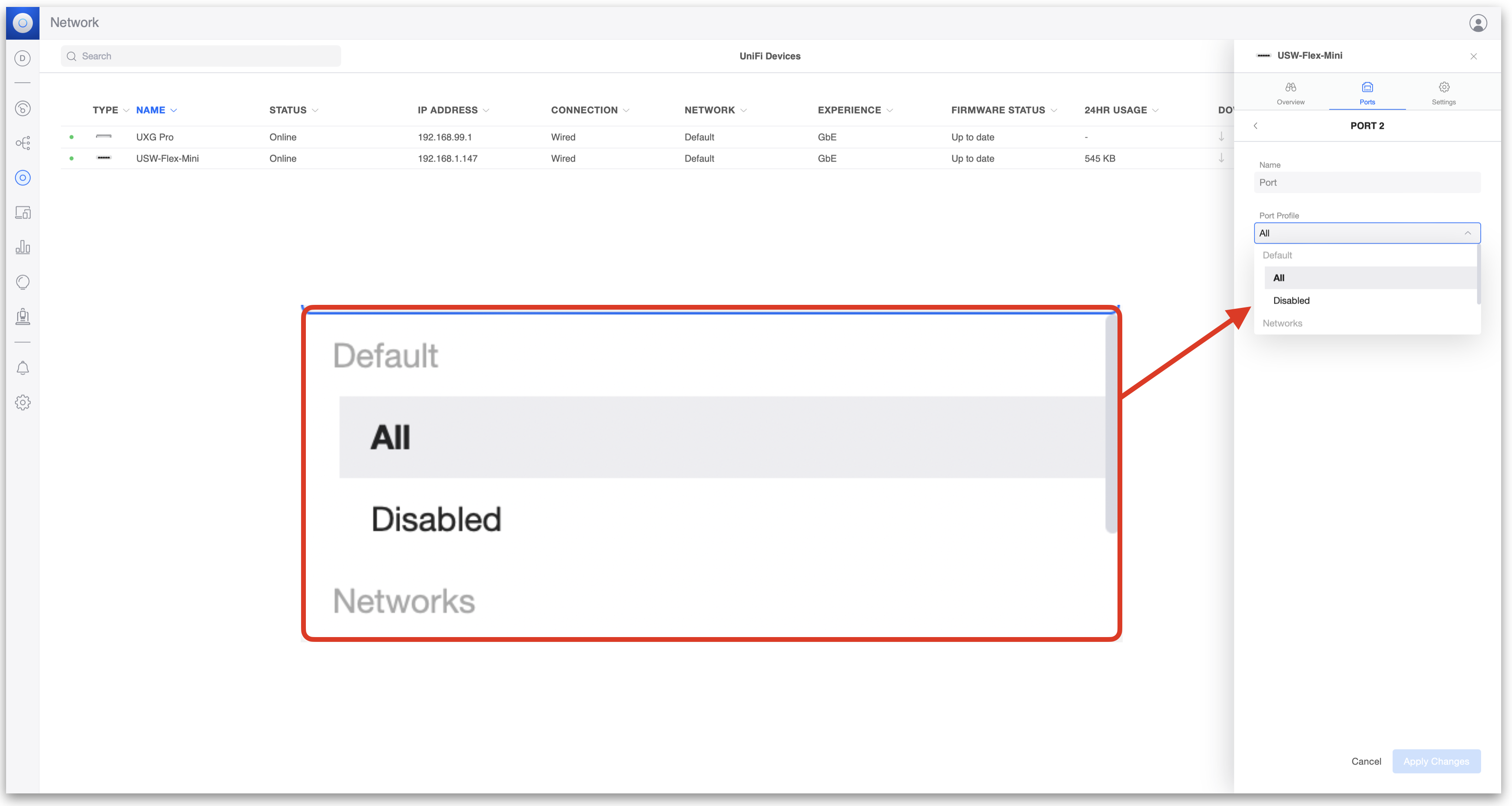

Selecting 'All' in this list will untag the default VLAN and tag everything else, this would be the best solution for the uplink port.

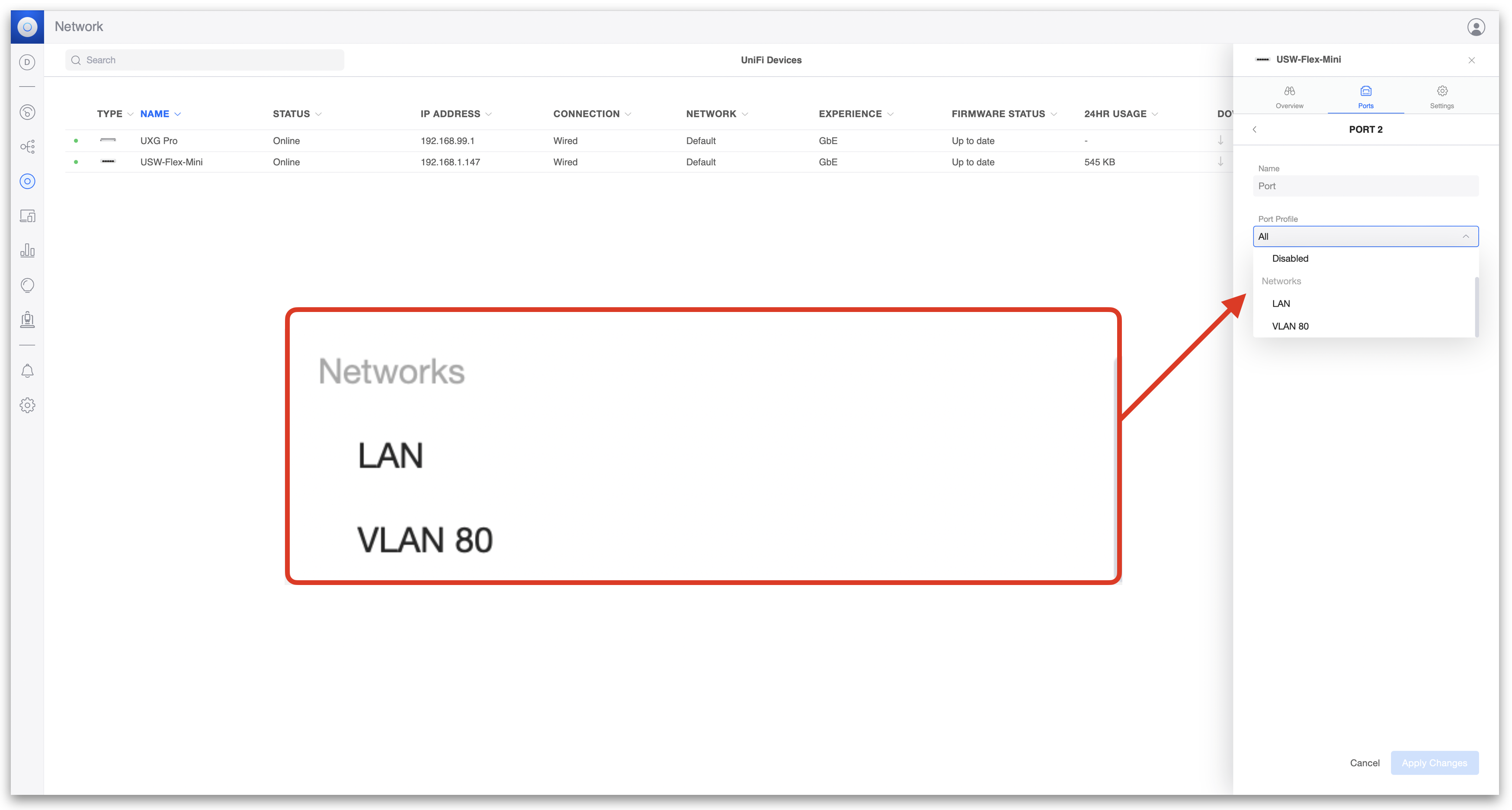

In this example, the UniFi Controller has two VLANS; 'LAN' and 'VLAN 80'. For this port, we cannot use any custom port profiles, we can only untag one VLAN at a time.

On this controller, there is a custom port profile created, which is tagging 'LAN' and untagging 'VLAN 80' - this is a limitation of the USW Flex Mini.

Old GUI

To untag a VLAN on one of the ports, open the UniFI Application and click on the 'Devices' section

Next, click on the Flex Mini in the list

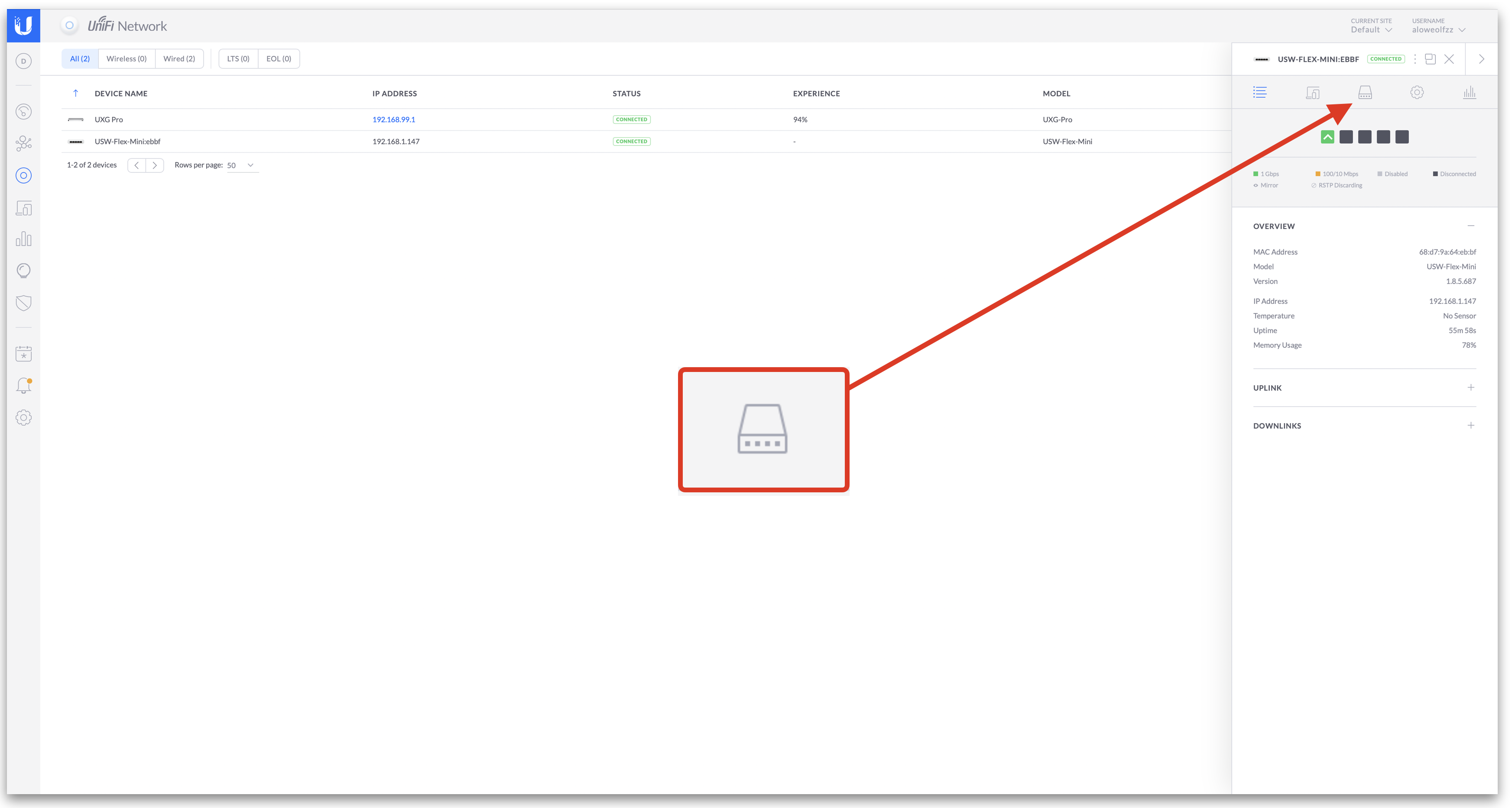

Once the side panel has opened, click on the 'Ports' tab

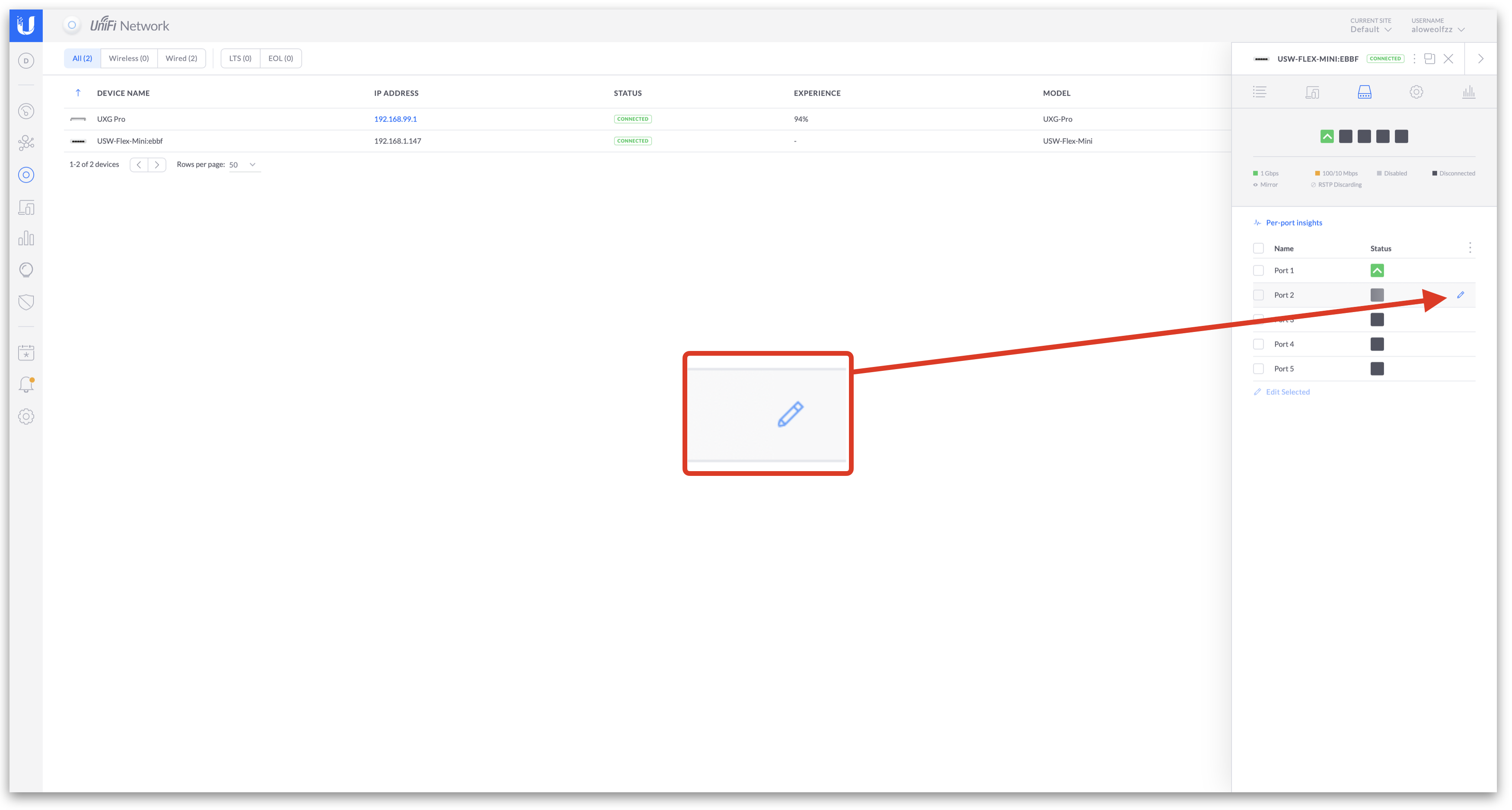

Click the Pencil icon to edit the port

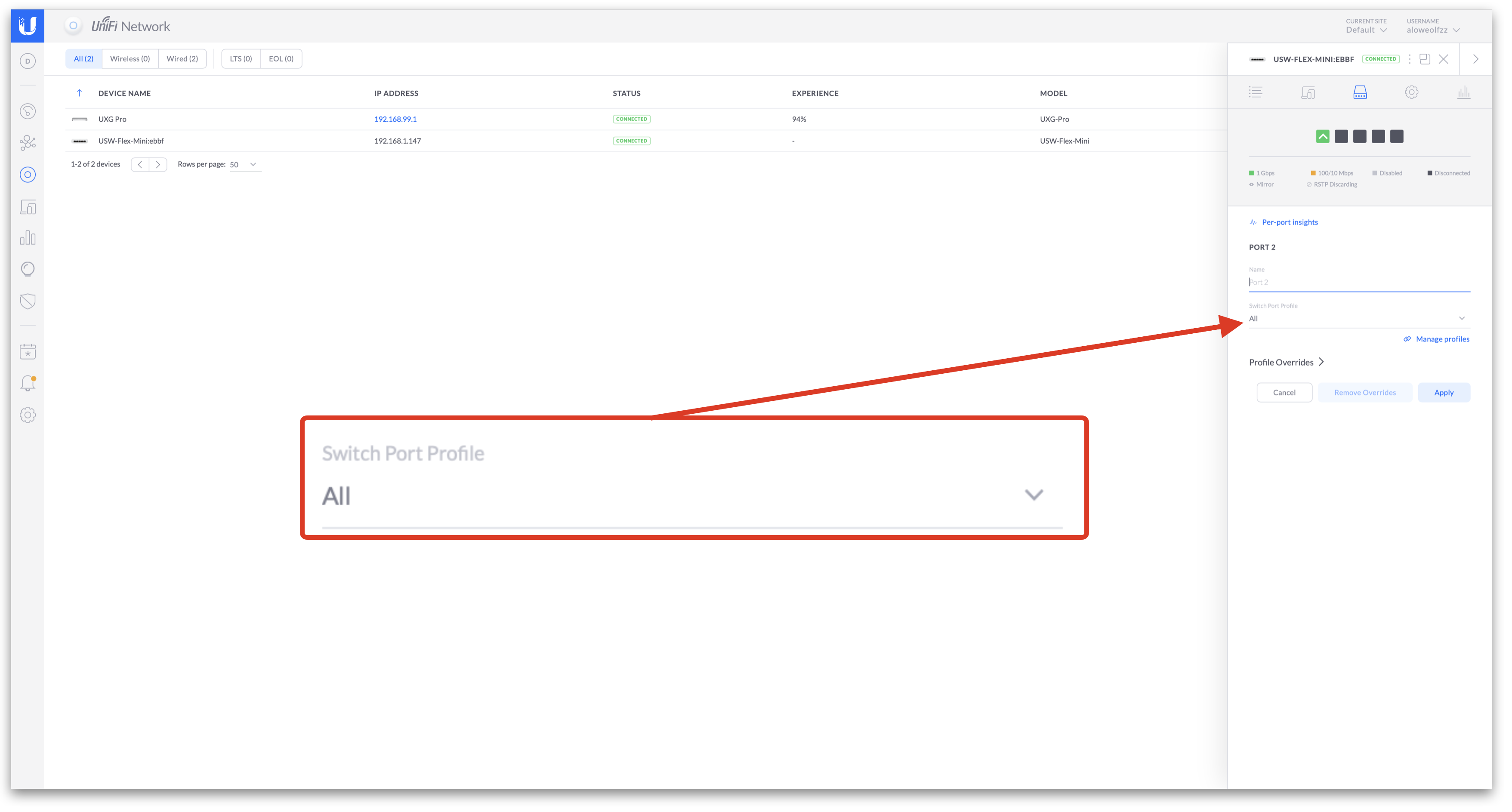

Click the 'Port Profile' to edit the VLANs on this port

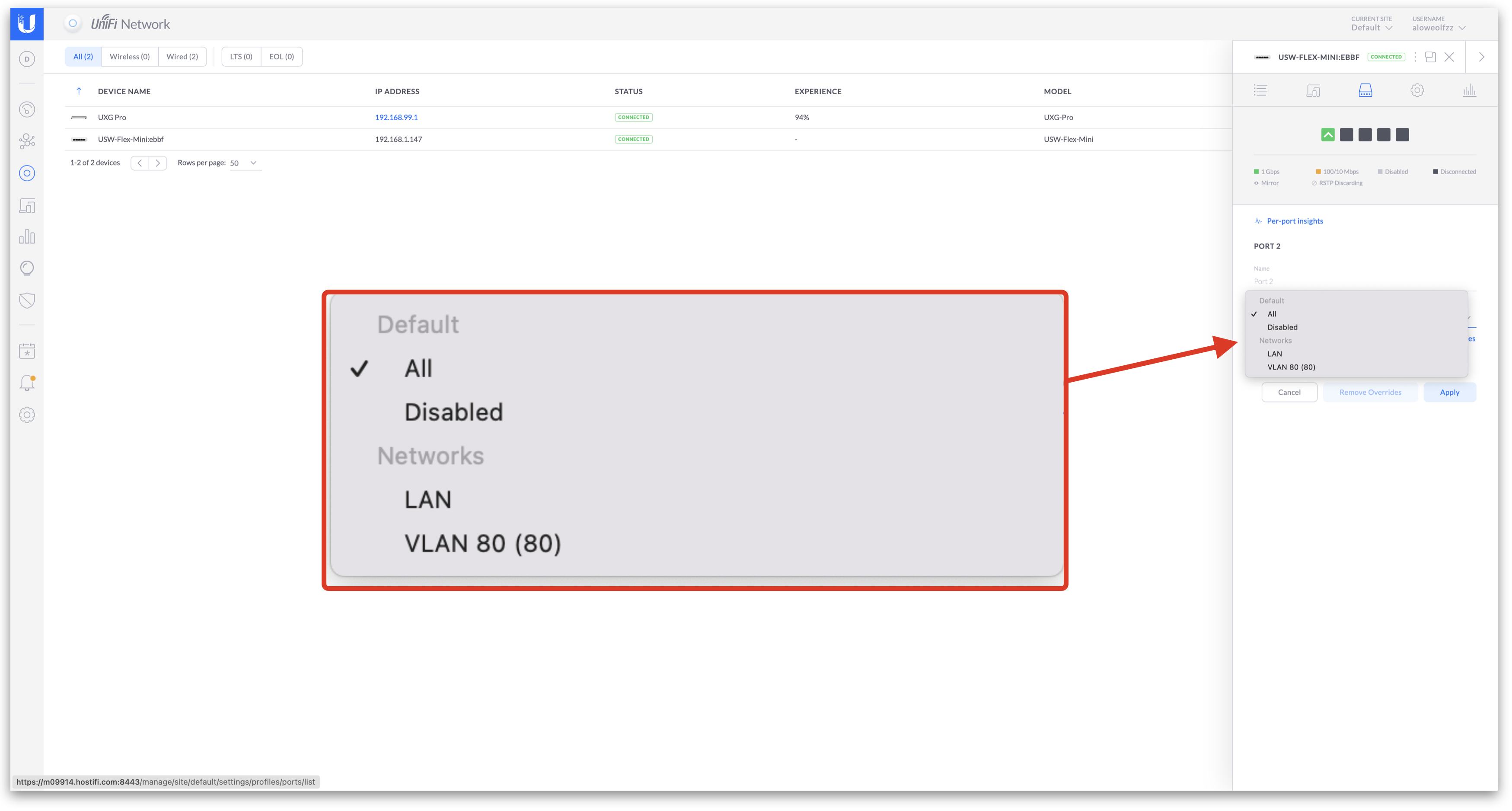

Selecting 'All' in this list will untag the default VLAN and tag everything else, this would be the best solution for the uplink port.

In this example, the UniFi Controller has two VLANS; 'LAN' and 'VLAN 80'. For this port, we cannot use any custom port profiles, we can only untag one VLAN at a time.

On this controller, there is a custom port profile created, which is tagging 'LAN' and untagging 'VLAN 80' - this is a limitation of the USW Flex Mini.

What you cannot do

To summarise, with the USW Flex Mini we can assign the 'All' profile to any port, which will untag the default VLAN, then tag the rest. Or we can untag one VLAN at a time for each port. With other UniFI Switches we can use the custom profiles for more flexibility.
